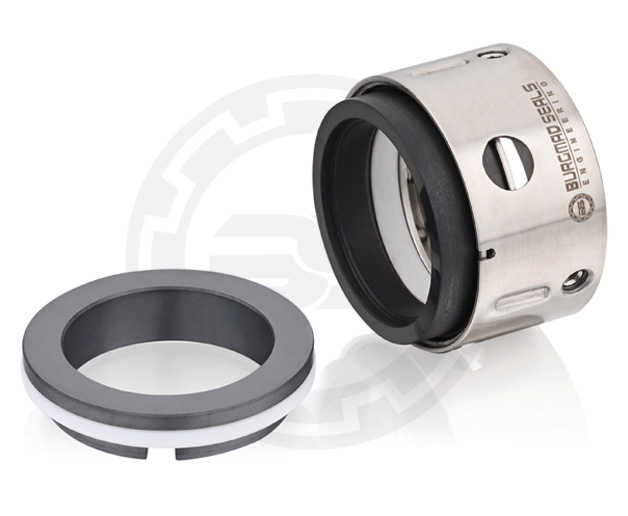

BM10U/BM11U Unbalanced Multi Spring

Seal Type BM10U/BM11U

Multi Spring Unbalance Seals is pusher type unbalanced seals used for general Purpose and Universal application. Their compact design permits their use in all types of rotating equipment, Centrifugal Pumps, Mixers, Agitators, and Compressors. Multi Spring unbalanced seals can be easily assembled or disassembled through circlip provided and Lower Inventory maintained since all parts are interchangeable with Multi Spring Balanced seals except Seal Ring.

Features :
  • Unbalanced Pusher Seal.
  • Single Acting.
  • Inside mounted
  • Independent of Direction of rotation
  • Variant with Secondary Seal O-ring (BM10U) OR PTFE Wedge (BM11U)
  • Available as Single, Dual, and tandem arrangement
Operating Limits :
  • Shaft Dia. : 15mm to 100mm
  • Pressure : UP to 10BAR
  • Temperature : -20°C to +260°C
Material :
  • Seal Face : Carbon/SIC/TC
  • Seat Face : SIC/TC/Ceramic
  • Secondary Seal : Viton, PTFE, GFT, NBR AND FFKM
  • MOC : SS 316, other Material on request.
Application :
  • Petrochemical Industry.
  • Chemical industry.
  • Refinery Technology
  • Pharmaceutical Industry.
  • Horizontal and Vertical Pumps, Reactors, Mixers
  • Water and Wastewater technology.
  • Process Industries.
  • Food and Beverage Industries.
