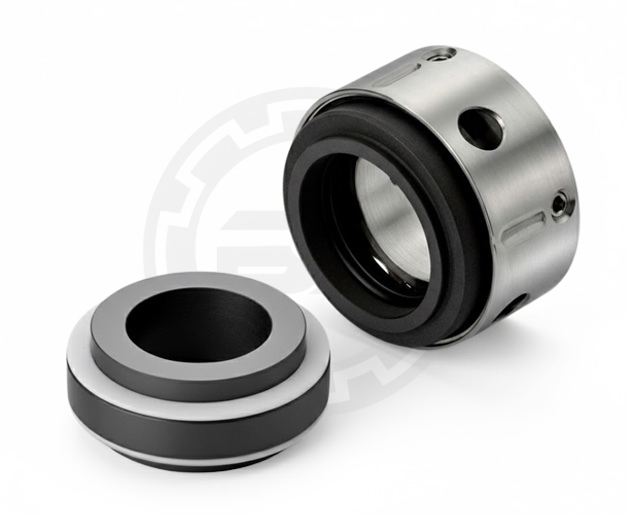

BM12R Multi Spring Reverse Balanced

Seal Type BM12R

Multi Spring Reverse Balance Seals is pusher type Reverse Balanced seals externally mounted with O-ring as Secondary Sealing used for general Purpose and Universal High-Pressure application. Their compact design permits their use in all types of rotating equipment, Centrifugal Pumps, Mixers, Agitators, and Compressor. Multi Spring Reverse balanced seals can be easily assembled or disassembled through circlip provided. This seal can also be used for corrosive services as the metallic components including Springs are protected from the Media to be Sealed. This seal can also install in double back-to-back arrangement as an internal seal.

Features :
  • Reverse Balanced Pusher Seal.
  • Single Acting.
  • Outside mounted
  • Independent of Direction of rotation.
  • Available as Single, Dual back-to-back- arrangement.
Operating Limits :
  • Shaft Dia. : 15mm to 100mm
  • Pressure : UP to 30BAR
  • Temperature : -20°C to +260°C
Material :
  • Seal Face : Carbon/SIC/TC
  • Seat Face : SIC/TC/Ceramic
  • Secondary Seal : Viton, TTV, GFT, EPDM, FEP AND FFKM
  • MOC : SS 316, other Material on request.
Application :
  • Petrochemical Industry.
  • Chemical industry.
  • Refinery Technology
  • Pharmaceutical Industry.
  • Horizontal and Vertical Pumps, Reactors, Mixers
  • Water and Wastewater technology.
  • Hot Water Application.
  • Process Industries.
  • Food and Beverage Industries.
