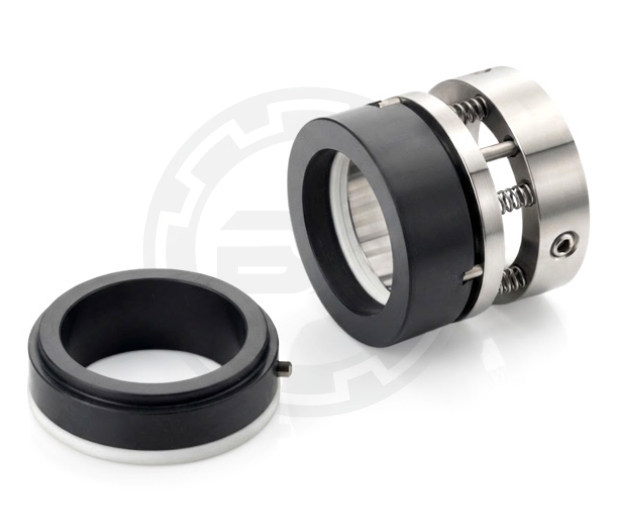

BM13 Unbalanced Multi Spring

Seal Type BM13

BM13 is Multi Spring Unbalance pusher type seals used for general Purpose and Universal application. Heavy cross sections of the rotary components resist high levels of corrosion, utilizing a simple rugged open rotary unit design. Their compact design permits their use in all types of rotating equipment, Centrifugal Pumps, Mixers, Agitators, and Compressor. This Design suitable for Aggressive, Abrasive, and viscous Liquids.

Features :
  • Unbalanced Pusher Seal.
  • Single Acting.
  • Inside mounted
  • Independent of Direction of rotation
  • Variant with Secondary Seal O-ring OR PTFE Packing
  • Available as Single and Dual arrangement.
Operating Limits :
  • Shaft Dia. : 22mm to 100mm
  • Pressure : UP to 30BAR
  • Temperature : -20°C to +260°C
Material :
  • Seal Face : Carbon/SIC/TC
  • Seat Face : SIC/TC/Ceramic
  • Secondary Seal : Viton, PTFE, GFT, NBR AND FFKM
  • MOC : SS 316, other Material on request.
Application :
  • Petrochemical Industry.
  • Chemical industry.
  • Refinery Technology
  • Pharmaceutical Industry.
  • Horizontal and Vertical Pumps, Reactors, Mixers
  • Water and Wastewater technology.
  • Process Industries.
  • Food and Beverage Industries.
