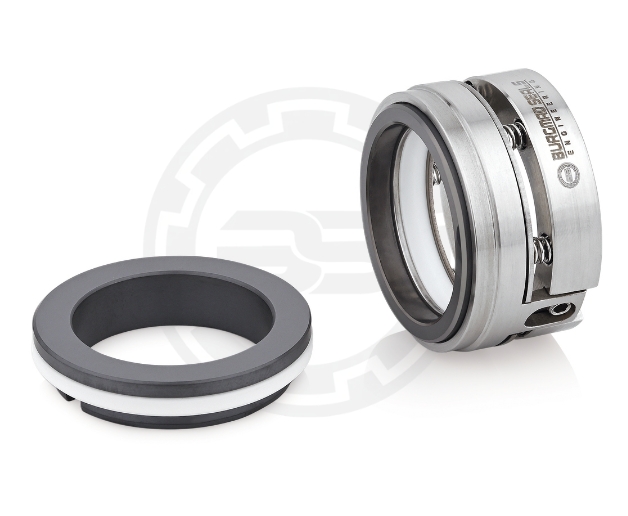

BM14/BM15 Multi Spring Unbalanced

Seal Type BM14/BM15

Multi Spring Unbalance Seals is pusher type unbalanced seals used for general Purpose and Universal application. Their compact design permits their use in all types of rotating equipment, Centrifugal Pumps, Mixers, Agitators, and Compressor, etc. Multi Spring unbalanced Seals Suitable for Abrasive and corrosive Liquids.

Features :
  • Unbalanced Pusher Seal.
  • Single Acting.
  • Inside mounted
  • Independent of Direction of rotation.
  • Variant with Secondary Seal O-ring (BM14) or PTFE Wedge (BM15)
  • Available as Single, Dual, and tandem arrangement.
Operating Limits :
  • Shaft Dia. : 25mm to 100mm
  • Pressure : UP to 10BAR
  • Temperature : -20°C to +260°C
Material :
  • Seal Face : Carbon/SIC/TC
  • Seat Face : SIC/TC/Ceramic
  • Secondary Seal : Viton, PTFE, GFT, NBR AND FFKM
  • MOC : SS 316, other Material on request.
Application :
  • Petrochemical Industry.
  • Chemical industry.
  • Refinery Technology
  • Pharmaceutical Industry.
  • Horizontal and Vertical Pumps, Reactors, Mixers
  • Water and Wastewater technology.
  • Hot Water Application.
  • Process Industries.
  • Food and Beverage Industries.
