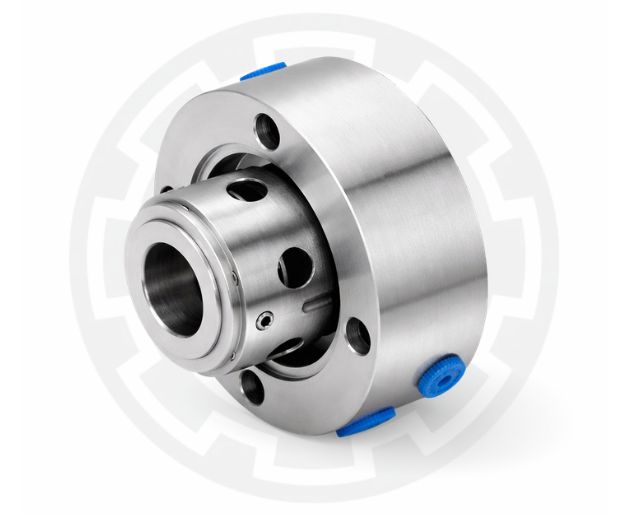

BSC70-Single Cartridge Balanced Seal

Seal Type BSC70

BSC70 Is Single Cartridge Mech. Seal has been designed to improve the ease and Accuracy of Seal Installation. The BSC70 for Universal Application. The Cartridge Seal have good demand in Sealing of rotating equipment. This seal is avoided from the Installation faults due to preassembled unit. Individual adaption is possible according to Pump design.

Features :
  • Cartridge Seal.
  • Single Seal.
  • Inside mounted
  • Independent of Direction of rotation.
Operating Limits :
  • Shaft Dia. : 25mm to 100mm
  • Pressure : UP to 15BAR
  • Temperature : -40°C to +220°C
Material :
  • Seal Face : Carbon/SIC/TC
  • Seat Face : SIC/TC
  • Secondary Seal : Viton, PTFE, GFT, KALREZ
  • MOC: SS316, other Material on request.
Application :
  • Process Industry.
  • Chemical industry.
  • Hot Media.
  • Pumps.
  • Rotating Equipment.
