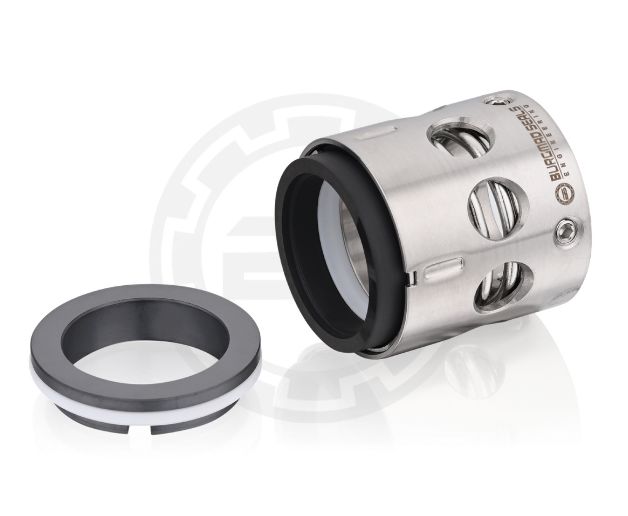

BS34U/35U Single Coil Spring Unbalance Seals

Seal Type BS34U/35U

BS34U/35U Single Coil Spring Unbalance Seals is Pusher Type unbalanced seals used for Dirty and Clogging Type application. This Seal can be easily assembled or disassembled through the circlip provided and Lower Inventory maintained since all parts are interchangeable with Single Coil Spring Balanced seals except Seal Ring.

Features :
  • Unbalanced Pusher Seal.
  • Single Acting.
  • Inside mounted
  • Independent of Direction of rotation.
  • Variant with Secondary Seal O-ring (BS34U) or PTFE Wedge (BS35U)
  • Variant with Primary Seal Ring for Balanced (BS34B) or PTFE Wedge (BS35B)
Operating Limits :
  • Shaft Dia. : 25mm to 100mm
  • Pressure : UP to 10BAR for unbalanced
  • Pressure : UP to 35BAR for Balanced
  • Temperature : -20°C to +220°C
Material :
  • Seal Face : Carbon/SIC/TC
  • Seat Face : SIC/TC
  • Secondary Seal : Viton, PTFE, GFT, NBR AND FFKM
  • MOC : SS 316, other Material on request.
Application :
  • Pharmaceutical Industry.
  • Water and Wastewater technology.
  • Hot Water Application.
  • Sugar Industries.
  • Food and Beverage Industries.
  • Pulp and Paper Industry.
  • Dirty abrasive and Solid Containing media.
