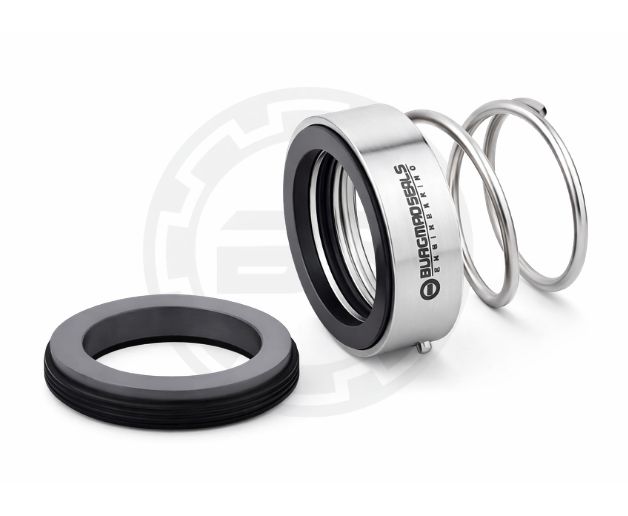

BS36 Single Conical Spring Unbalance Seals

Seal Type BS36

BS36 Single Conical Spring Unbalance Seals with O-ring as secondary sealing member used for general Purpose and Universal application. BS36 Seals are suitable for low Solids Content. these seals are dependent of the direction of rotation, which is seen from the drive end of the shaft.

Features :
  • Unbalanced Pusher Seal.
  • Single Acting.
  • Inside mounted
  • Dependent of Direction of rotation.
  • Rotating conical Spring.
Operating Limits :
  • Shaft Dia. : 25mm to 100mm
  • Pressure : UP to 10BAR for unbalanced
  • Temperature : -20°C to +140°C
Material :
  • Seal Face : Carbon/SIC/TC
  • Seat Face : SIC/TC
  • Secondary Seal : Viton, NBR, EPDM AND FFKM
  • MOC : SS 316, other Material on request.
Application :
  • Chemical Industry.
  • Water and Wastewater technology.
  • Sugar Industries.
  • Food and Beverage Industries.
  • Pulp and Paper Industry.
  • Low Solid Containing media.
  • Basic sterile application.
